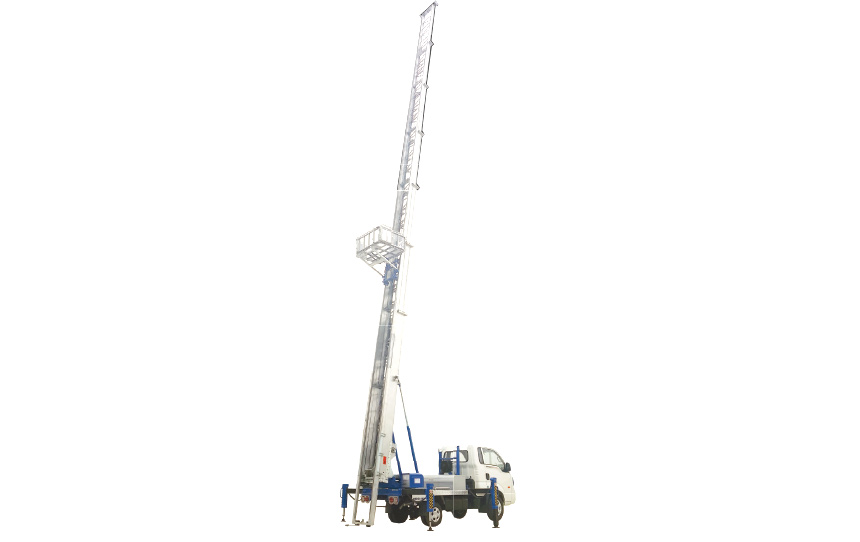

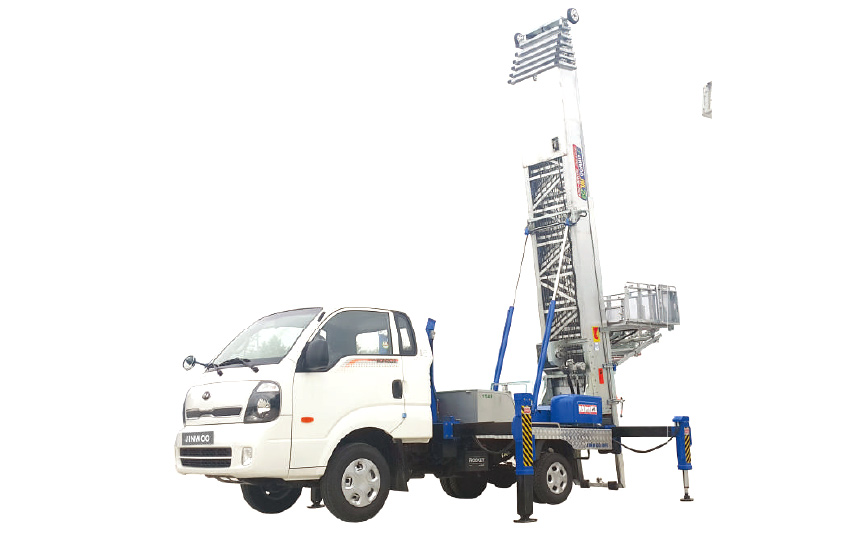

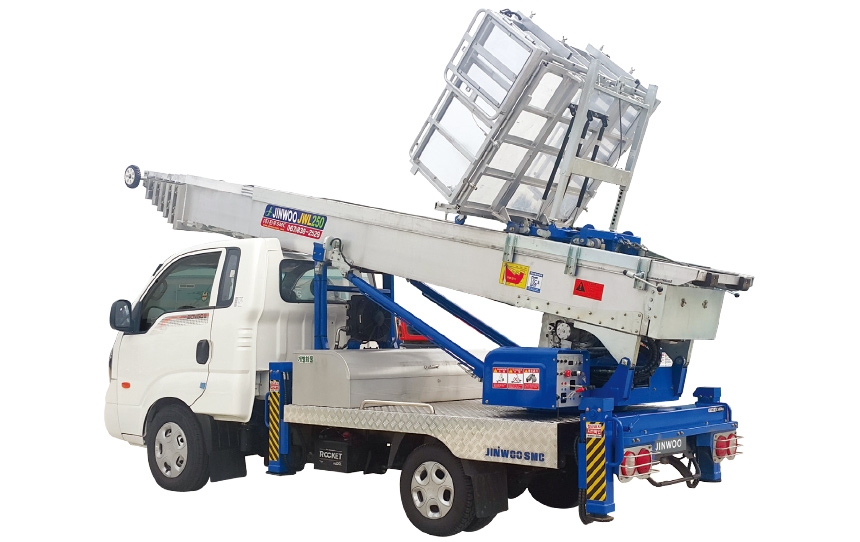

LADDER LIFT TRUCK

JWL250

Low flex boom and sturdy outrigger frame
  • 7-stage boom made of high-tensile special aluminum alloy material
  • An urban elevated ladder truck that can operate wired and wirelessly and can work in a narrow space
  • A strong force in ladder trucks with convenient transport vehicles

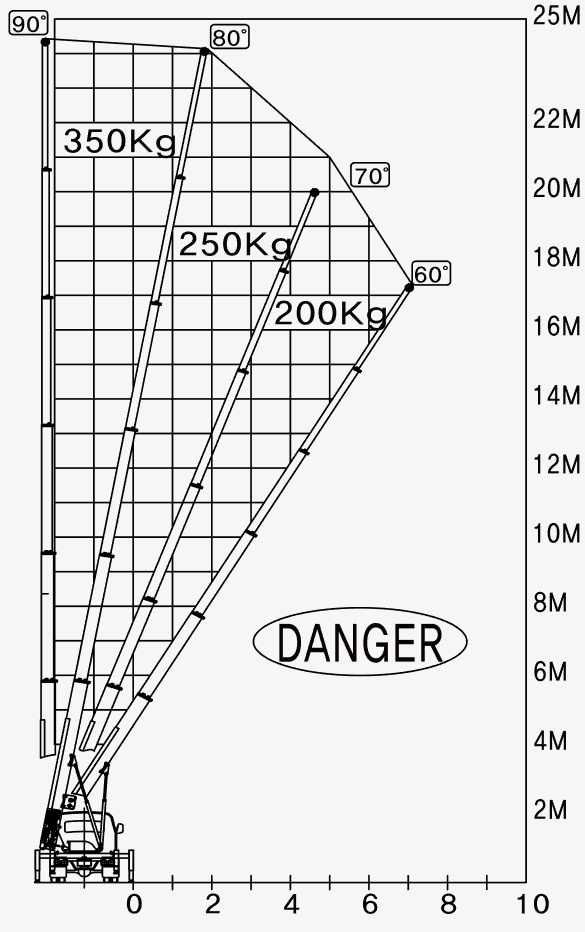

Work Area Diagram

Specfication

DESCRIPTION Unit Data
Mounting Truck ton 4.5 GVW
Max.working floor of building fl 9
Max. Height m 25
Product’s Dimension
(with Vehicle)
Length mm 5,200
Height mm 1,740
Width mm 2,600
Power Engine P.T.O
Turntable Rotation Angle deg. ±135
Type By hydraulic reduction gear
Boom Number of booms 7
Material High tension,
aluminum alloyed
Extension By wire
main/supplementary : 8mm
Lifting Conveyance Dimension mm Basic : 1,300*1,000*520
Extended : 2,220*1,470*70
Angle control by one touch
Max. working load kg 350
Max.
operation speed
Boom’s
extension/retraction
m/m within 24
Outrigger Type H-TYPE
Extension Slide ~ Manual
Jack ~ Hydraulic Cylinder
Max. Extension mm 3,650
Remote control Type Dial(wired, wireless)
Function Automatic conveying
Safety system Hydraulic check valve, Solenoid valve, Emergency stop, Sensor of over load, Sensor of speed reducing area, Warning system of max. height, Protection system for over turn.

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
