| Contents | Unit | Data | Remarks | |
|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 18.5 GVW | 4x2 | |
| Max. Working Load | Payload | Kg | 400 | Including of 3 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 9,790 | Transport dimension |
| Height | mm | 3,980 | ||
| Width | mm | 2,445 | ||

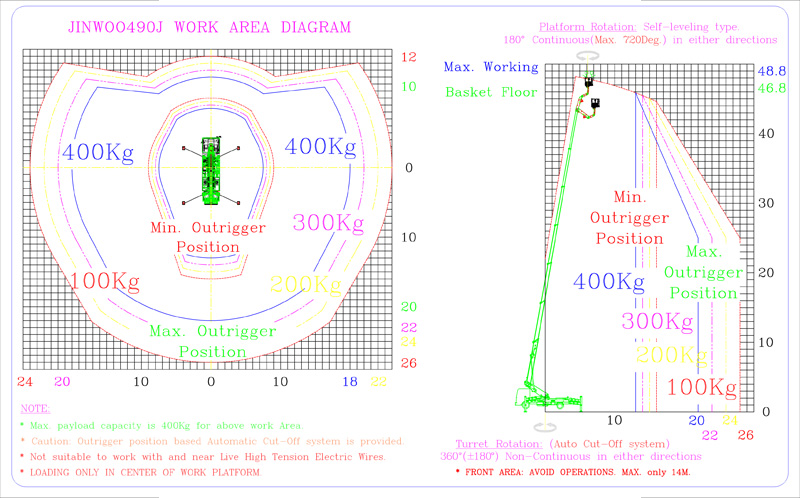

| Working Area | Max. Height | m | 49 | Including Operator height |
| Max. Outreach | m/kg | 20 - 400, 26 - 100 | Outrigger Max. extended | |
| Work Platform | Dimension (L x W x H) | mm | 1,830 * 500 *1,100 | Basic |
| 3,230 * 1,030 * 1,100 | Extended | |||
| Rotation Angle | deg. | 360deg. Continuous | ±720 | |
| Boom | Type | #1 to #3 Hexadecagon #4 to #7 Octagonal |
Special 16 & 8 edges | |
| Number of Booms | 7 Telescopic + 1 Jib | Telescopic Main | ||
| Extension | Hydraulic Cylinders, Chains | |||
| Turntable Rotation | Type | Slewing Bearing with Hydraulic Reduction Gears | Minimal Backlash | |
| Rotation Angle | deg. | 350 (±175) | Auto Cut-off | |
| Hydraulic Pump Drive Type |
Engine | P.T.O | Electric type | |
| Outrigger | Width | mm | Front : 8,410 Rear : 8,150 |
Program based Multiple positioning |
| Extension | Hydraulic Cylinder, Wires | |||
| Type | X - A | Patented | ||
| Operations and Controls |
Type | Hydraulic Levers | All controls | |
| Remote control | Portable Radio Wireless | Upper controls only | ||
The above specifications are bound to change without prior notification for better operators safety and due to changes in vehicle specifications.
