| Contents | Unit | Data | Remarks | |
|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 34 GVW | 8x4 | |
| Max. Working Load | Payload | kg | 300 | Including 3 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 12,990 | Transport dimension |
| Height | mm | 3,990 | ||
| Width | mm | 2,495 | ||

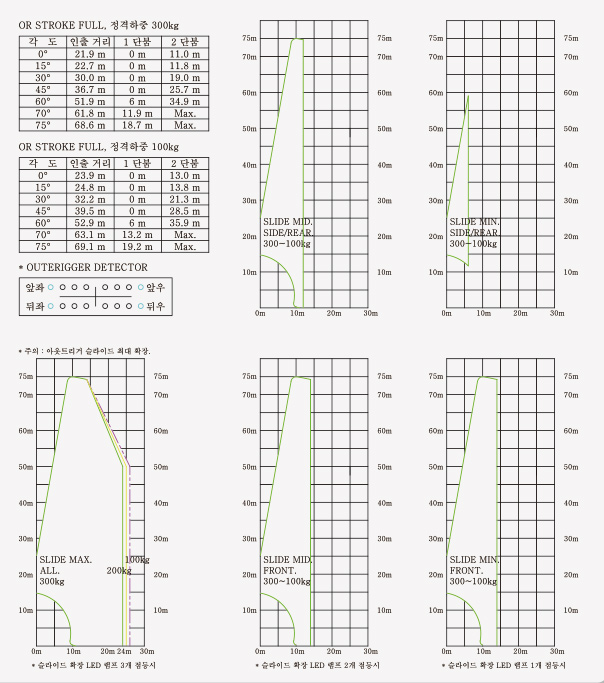

| Working Area | Max. Height | m | 75 | Including Operator height |
| Max. Outreach | m/kg | 24 - 300 / 28 - 100 | Outrigger Max. extended | |
| Work Platform | Dimension | mm | 1,830 * 500 *300 | Basic |
| 3,230 * 1,030 *1,100 | Extended | |||
| Rotation Angle | deg. | 360 continuous | ±720 | |
| Boom | Type | Octagonal | 8 edges | |
| Number of Booms | 10 | Telescopic | ||
| Extension | By hydraulic Cylinder & Chain | Dual stage | ||
| Turntable Rotation | Type | Slewing Bearing with Hydraulic Reduction Gears | Minimal backlash | |
| Rotation Angle | deg. | 360 continuous | ±720 | |
| Hydraulic Pump Drive Type | Engine | P.T.O | Minimal backlash | |
| Outrigger | Width | mm | Front : 8,000 ; Rear : 8,045 | Different positioning |
| Extension | Hydraulic Cylinders, Wire | |||
| Type | X - A | Patented | ||
| Valve control | Type | By lever | All controls | |
| Remote control | Wireless | Upper controls only | ||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
