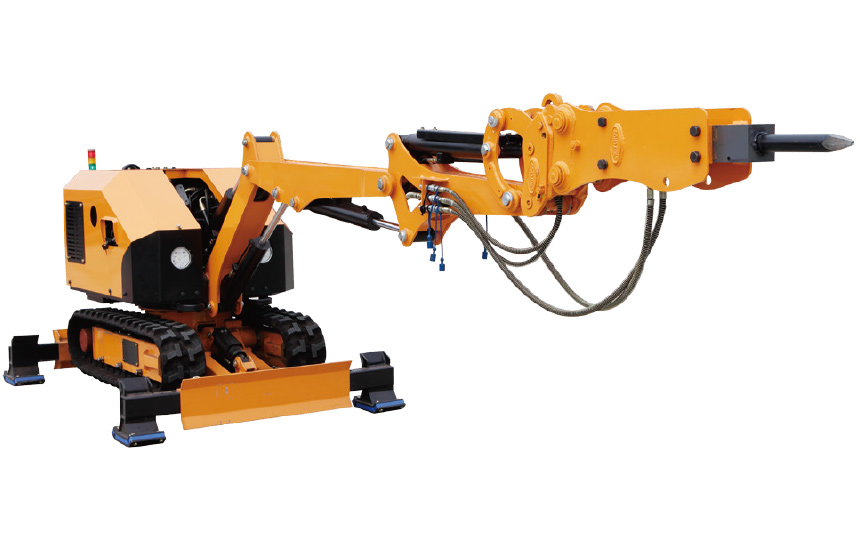

MINI BREAKER

B020D

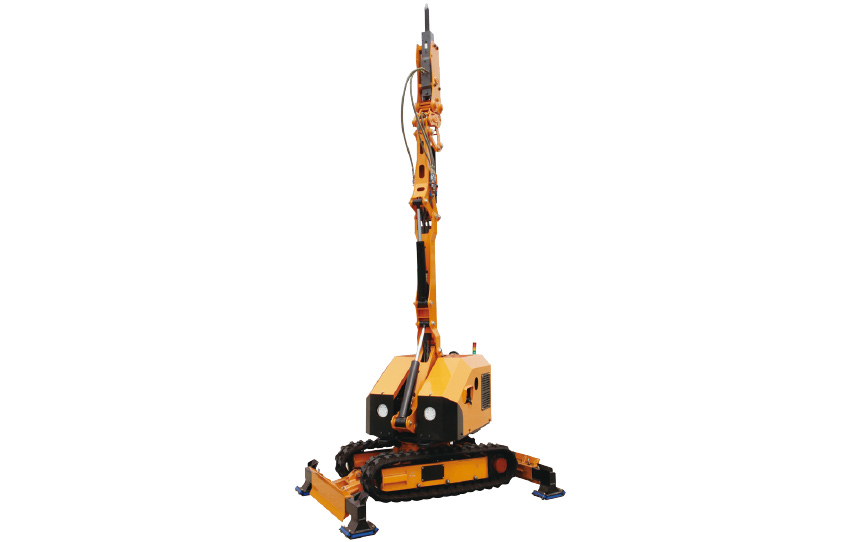

MAX. LIFTING LOAD IS 3.5 TON ! MAX. WORKING HEIGHT IS 4M !
  • Possible to work in the narrow area by wireless remote control system

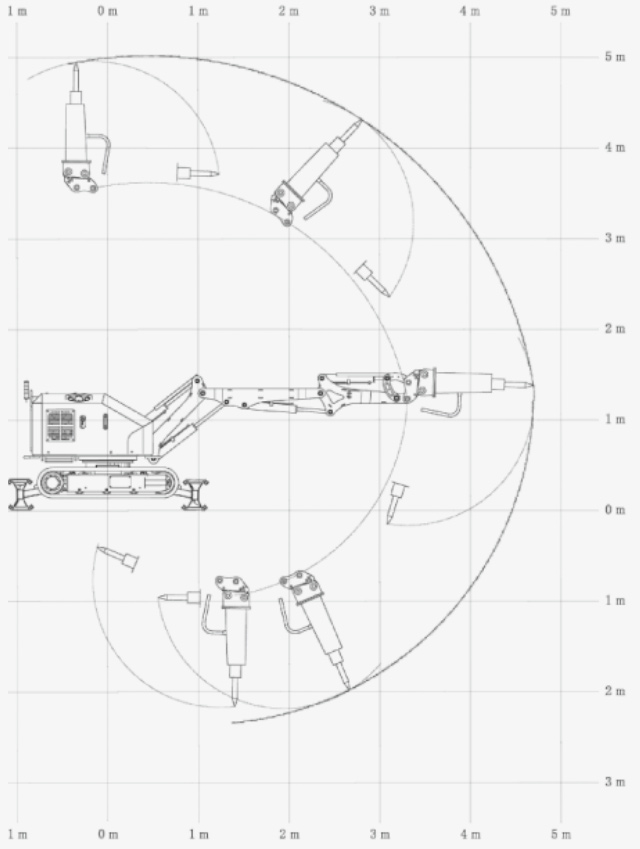

Work Area Diagram

Specfication

Contents Unit Data
Gross weight (Breaker included) kg 2100
Product’s Dimension
(Breaker included)
Length mm 2760
Height mm 1290
Width mm 930
Working Area (Based on rotation center and ground) Front direction mm 4650
Upward direction mm 5000
Downward direction mm 2150
Operation specs. Rotation radius deg 360(continuous)
Rotation speed deg/s 29 sec/360°
Driving speed m/s 0.7
Gradability deg 30
Boom system No. of booms no. 3
Operations by Cylinder
No. of cylinders no. 4
Attachments
*Breaker-basic
*Bucket/crusher-option
Breaker(impact energy) Joule 447
Bucket(capacity) m3 0.073
Crusher(opening width) mm 372
Hydraulic system Pump flow type ℓ/min 59
Pump type Piston pump
Operation pressure bar 140
Oil tank capacity 20
Main hydraulic control valve No. of valves no. 10
Control type Portable wireless(Radio)
Wireless remocon Transceiving range m above 50
No. of channel no. 8(A~H)
Function On/off, Control
Engine drive system No. of cylinders no. 3
Displacement cc 1007
Fuel Diesel
Cooling system by water
Starting type Auto-electric
Rated output kW 22
Input voltage
No. of rated output rpm 2800
No. of max. rotation rpm 3000
Fuel Tank 15

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
