| Contents | Unit | Type 1 | Type 2 | Remarks | |
|---|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 5 GVW | Min. 3.5 GVW | 4x2 | |
| Max. Working Load | Payload | Kg | 220 | Including 2 persons | |
| Product’s Dimension (with Vehicle) |
Length | mm | 6,450 | 5,640 | Transport dimension |
| Height | mm | 2,750 | 2,610 | ||
| Width | mm | 2,050 | 1,980 | ||

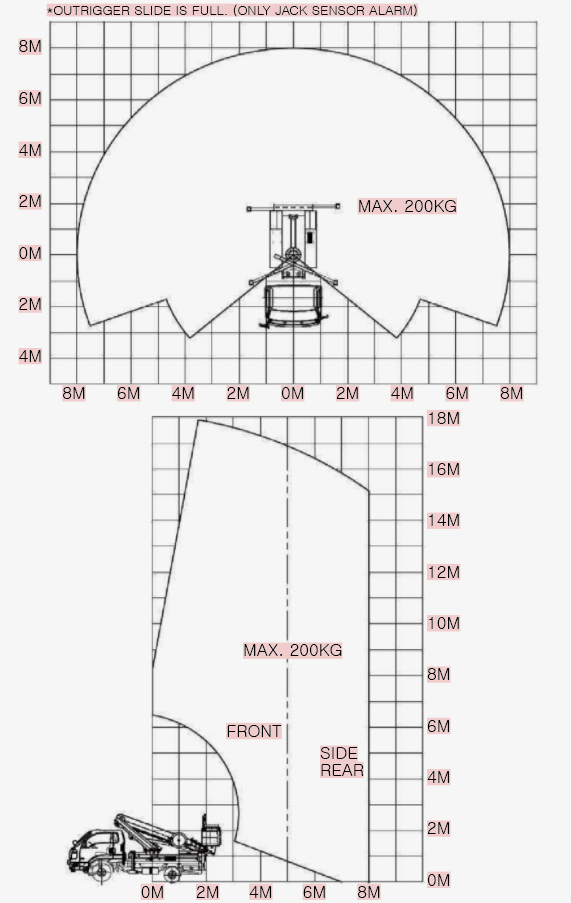

| Working Area | Max. Height | m | 18 | Operator height | |
| Max. Outreach | m/kg | 8.5 - 220 / 11.0 - 100 | Outrigger Max. extended | ||
| Work Platform | Dimension (L x D x H) | mm | 1,280 * 850 * 1,090 | FRP Insulated |
|
| 2,460 * 1,000 * 1,100 | Steel | ||||
| Rotation Angle | deg. | 360deg. Continuous | ±720 | ||
| Boom | Type | Rectangular | Special treated | ||
| Number of Booms | 4 | 5 | Telescopic | ||
| Extension | Hydraulic Cylinder, Chains | Single stage | |||
| Turntable Rotation | Type | Slewing Bearing with Hydraulic Reduction Gears | Minimal backlash | ||
| Rotation Angle | deg. | 350 ( ±175 ) | Auto Cut-off | ||
| Hydraulic Pump Drive Type | Engine | P.T.O | Electric type | ||
| Outrigger | Width | mm | Front : 3,380 Rear : 3,380 |
Front : 3,250 Rear : 3,440 |
Different positioning |
| Extension | Hydraulic Cylinder, Wire | ||||
| Type | H - H | X - H | Optional | ||
| Operations and Controls | Type | Hydraulic Levers | All controls | ||
| Remote control | Electronic Control Unit | Portable Radio Wireless | Upper controls only | ||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
