| Contents | Unit | JINWOO130 | JINWOO100 | Remark | |
|---|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 4.5 GVW | Min. 3.5 GVW | 4x2 | |
| Max. Working Load | Payload | Kg | 220 | 200 | Including 2 persons |
| ( OPTIONAL 100Kgs Crane Winch ) | |||||
| Product’s Dimension (with Vehicle) |
Length | mm | 5,515 | 4,100 | Transport dimension |
| Height | mm | 2,380 | 2,370 | ||
| Width | mm | 1,745 | 1,960 | ||
| Working Area | Max. Height | m | 13.2 | 10.2 | Operator height |
| Max. Outreach | m/kg | 6.5 - 200 10.5 - 100 |
6.5 - 200 8.5 - 100 |
Outrigger Max. extended | |
| Work Platform | Dimension L x W x H | mm | 1,090 * 790 * 960 (20KV) | FRP Insulated |
|
| 1,820 * 800 * 1,100 | Steel | ||||
| Rotation Angle | deg. | ±80 | ±180 Optional |
||
| Boom | Type | Rectangular | 4 edges | ||
| Number of Booms | 3 | 2 | Telescopic | ||
| Extension | Hydraulic Cylinder, Chains | Single stage | |||
| Turntable Rotation | Type | Slew Drive with Hydraulic Reduction Gear | Minimal backlash | ||
| Rotation Angle | deg. | 350 ( ±175 ) | Auto Cut-off | ||
| Hydraulic Pump Drive Type | Engine | P.T.O | Electric type | ||
| Outrigger | Width | mm | 3,100 | Different positioning | |
| Extension | Hydraulic Cylinders, Wires | ||||
| Type | H-H / H-A | Patented | |||
| Operations and Controls | Type | Hydraulic Levers | All controls | ||

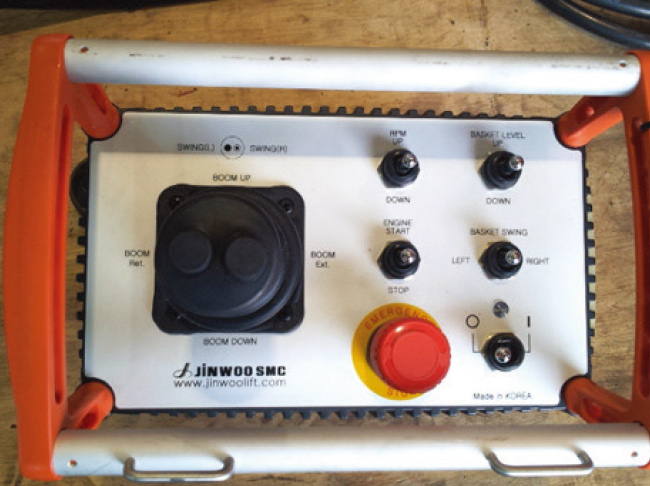

| Upper controls | Electronic Control Box or Hydraulic Levers | Optional | |||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
