Aerial Elevating Work Platform

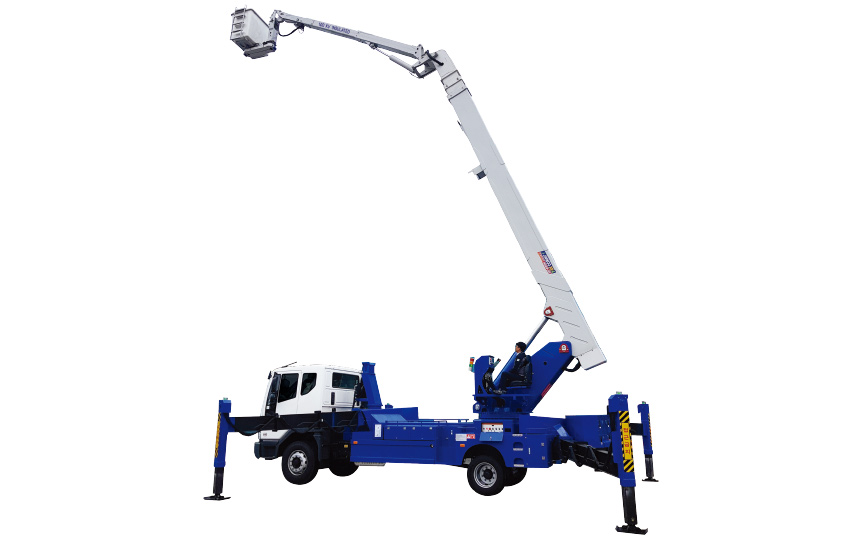

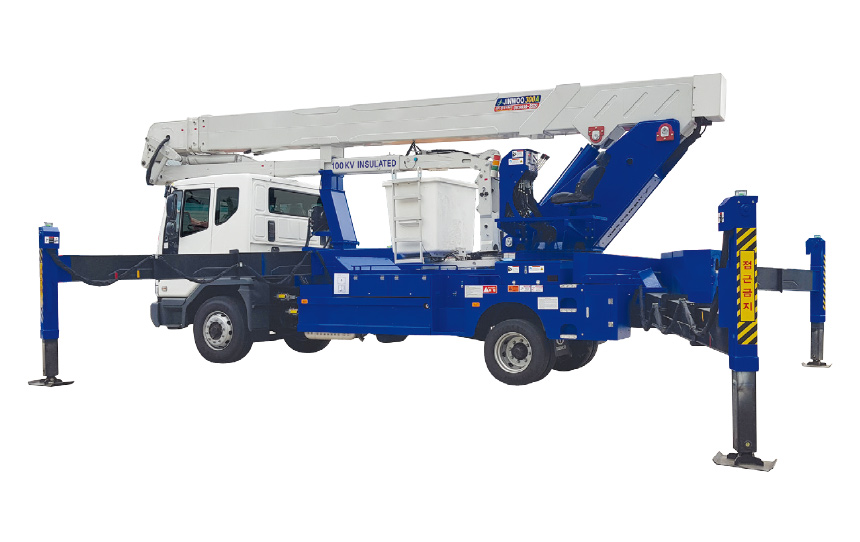

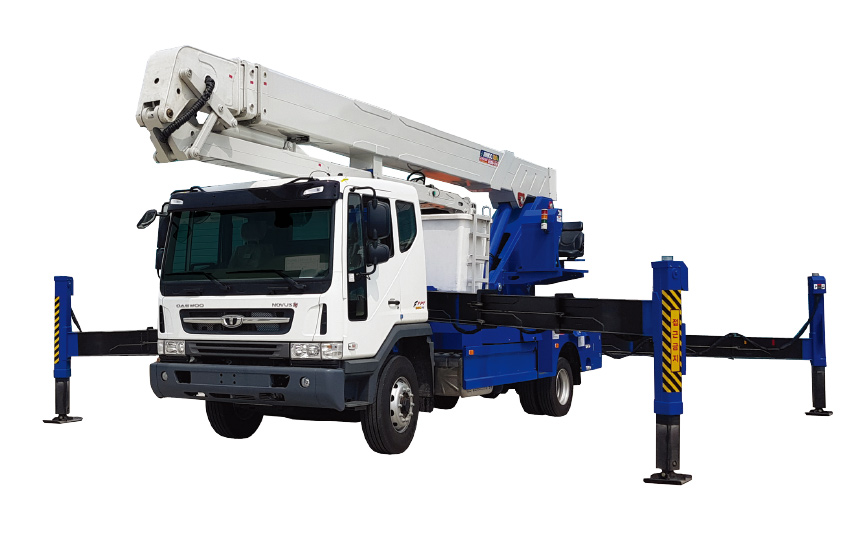

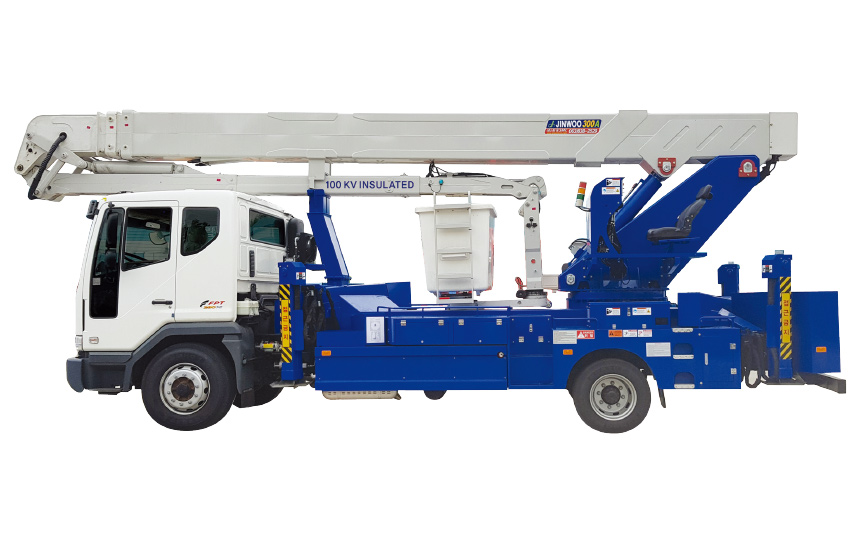

JINWOO 300A

INSULATED BOOM & BUCKET FOR WORKING ON LIVE ELECTRIC LINES
  • X-A type strong outrigger for safe wider outreach.
  • Possible to work on 30m height of communication lines, electric wires, HTV lines and telephone poles.
  • Three interlocked boom and one articulating boom make easy to approach into intricated working space.

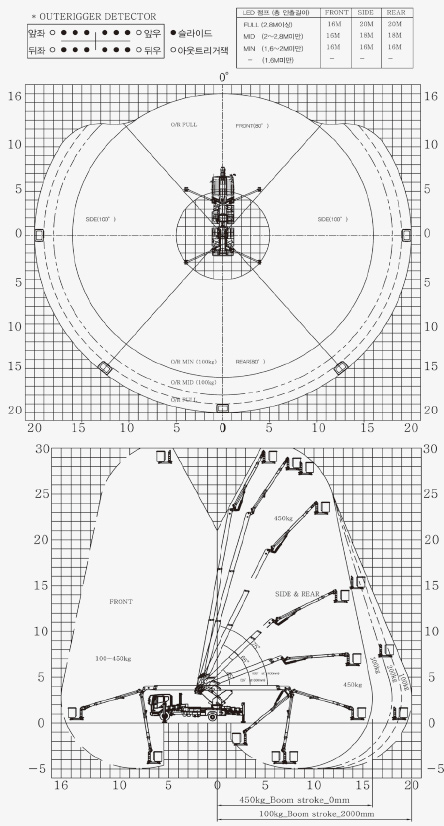

Work Area Diagram

Specfication

Contents Unit Data Remarks
Mounting Truck Ton 16.5 GVW ultra-long
Max. Working Load Payload kg 450 Including 2 persons
Product’s Dimension
(with Vehicle)
Length mm 10,180
Height mm 3,980
Width mm 2,495
Working Area Max. Height m 30
Max. Outreach m/kg Rear/Side : 16/450, 20/100
Front : 16/450, 16/100
Platform Dimension mm 1,390*960*1,100 Basic
Rotation Angle deg. 360 continuous
Boom Type Rectangle
Number of Booms Three interlocked, one articulating Last Insulated

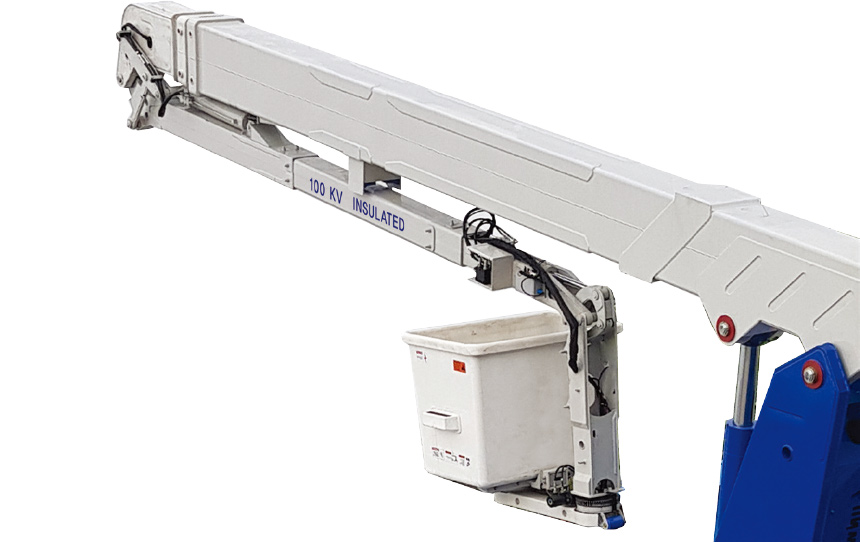

Insulation Volts 100,000 Live Working
Extension By hydraulic Cylinder & Chain
Turntable Rotation Type deg. By Hydraulic reduction gear
Rotation Angle 350 Limited
Hydraulic Pump Drive Type Engine mm P.T.O
Outrigger Width 5,940 Front
5,960 Rear
Extension By hydraulic Cylinder & Wire
Type X - A Patented
Valve control Type By lever
Remote control Wireless

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
